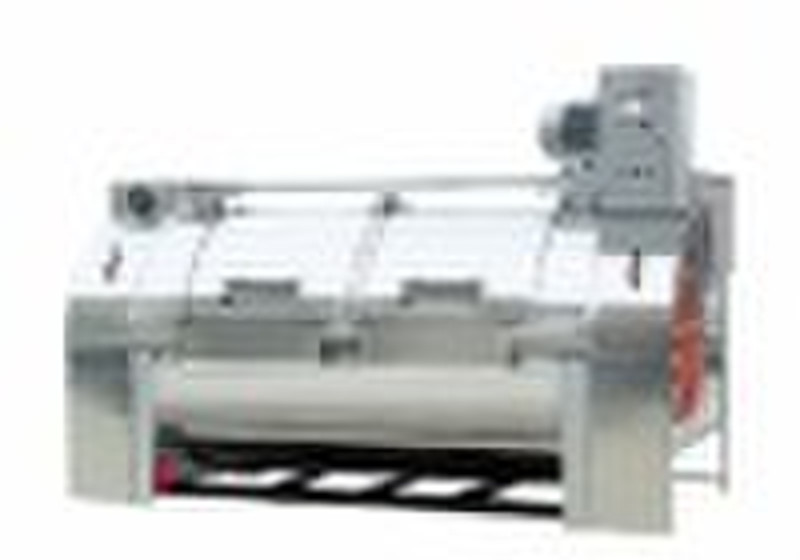

All-steel frequency conversion to dye the machine

Performance Introduction The industrial washing machine has the following features: quick steam heating, easy operation, convenient upgrading, wide usage range, to meet with the users’ requirements, Based on the applicable scope, beautiful outside appearance, convenient operation, stable running and convenient upgrading. It is a kind of economic washing machinery. Based the gas driving valve, electromagnetic valve, NC constant temperature and programmable as the controlling components. As per the preset temperature, add the steam automatically to keep the stable temperature, setup the time to control the working time automatically so as to control the machine easily. The machine is made of the high-quality stainless steel plate and other components to ensure all the users high and reliable quality. To meet with the different requirements of the equipment performance for the clients, the users must purchase the other accessories for the upgrading and installation of the machine, the main accessories includes: 1) Programmable micro-computer controller. 2) Temperature automatic controlling accessories: steam driving valve and electrical controlling valve. 3) Inlet gas driving apparatus: gas driving inlet valve, gas driving controlling unit. 4) Installing the transducer to adjust the rotating speed of rotating drum. Performance Parameter Table Model GX10 GX15 GX30 GX50 GX70 Max. Capacity(Kg) 10 15 30 50 70 Drum Dimension(mm) φ480*600 φ540*680 φ660*800 φ800*1000 φ960*1220 Drum Speed(r/min) 47 47 35 34 34 Motor Power(KW) 0.75 0.75 1.1 1.5 2.2 Main Power Supply 3HP+N 380/220V 50HZ Steam Pressure (Mpa) 0.4-0.6 Steam Inlet Size(in) 3/4” 3/4” 3/4” 3/4” 1” Water Inlet Size(in) 1.5” 1.5” 1.5” 1.5” 2” Water Outlet Size(in) 3” 3” 3” 3” 4” Overall Dimension(mm) 1100*650 *1000 1160*720 *1050 1520*1100 *1300 1750*1200 *1500 2050*1400 *1850 sheet Model GX100 GX150 GX200 GX250 GX300 Max. Capacity(Kg) 100 150 200 250 300 Drum Dimension(mm) φ960*1420 φ1060*1650 φ1080*2000 φ1200*2280 φ1220*2600 Drum Speed(r/min) 34 34 32 34 36 Motor Power(KW) 3 4 5.5 7.5 7.5 Main Power Supply 3HP+N 380/220V 50HZ Steam Pressure (Mpa) 0.4-0.6 team Inlet Size(in) 1” 1” 1”*2 1”*2 1”*2 Water Inlet Size(in) 2” 2” 2”*2 2.5”*2 2.5”*2 Water Outlet Size(in) 4” 4” 4”*2 5”*2 5”*2 Overall Dimension(mm) 2300*1300 *1800 2500*1400 *1900 2900*1400 *1900 3200*1500 *2100 3500*1600 *2100
